Component Setup

The component is configured per Lightning record page through Lightning App Builder. Each instance is independent — you can place several copies on the same page, each with different settings.

Adding the component to a page

1. Open the target record page (e.g., an Account record).
2. Click the gear icon (Setup) → Edit Page.
3. In the left component palette, find Tucario Smarter Files under Custom — Managed.
4. Drag it onto the desired region of the page.
5. Configure the properties in the right-hand panel.
6. Save and Activate the page.

Component properties

Source of truth: src/lwc/tucarioFilesWithDownloadAll/tucarioFilesWithDownloadAll.js-meta.xml.

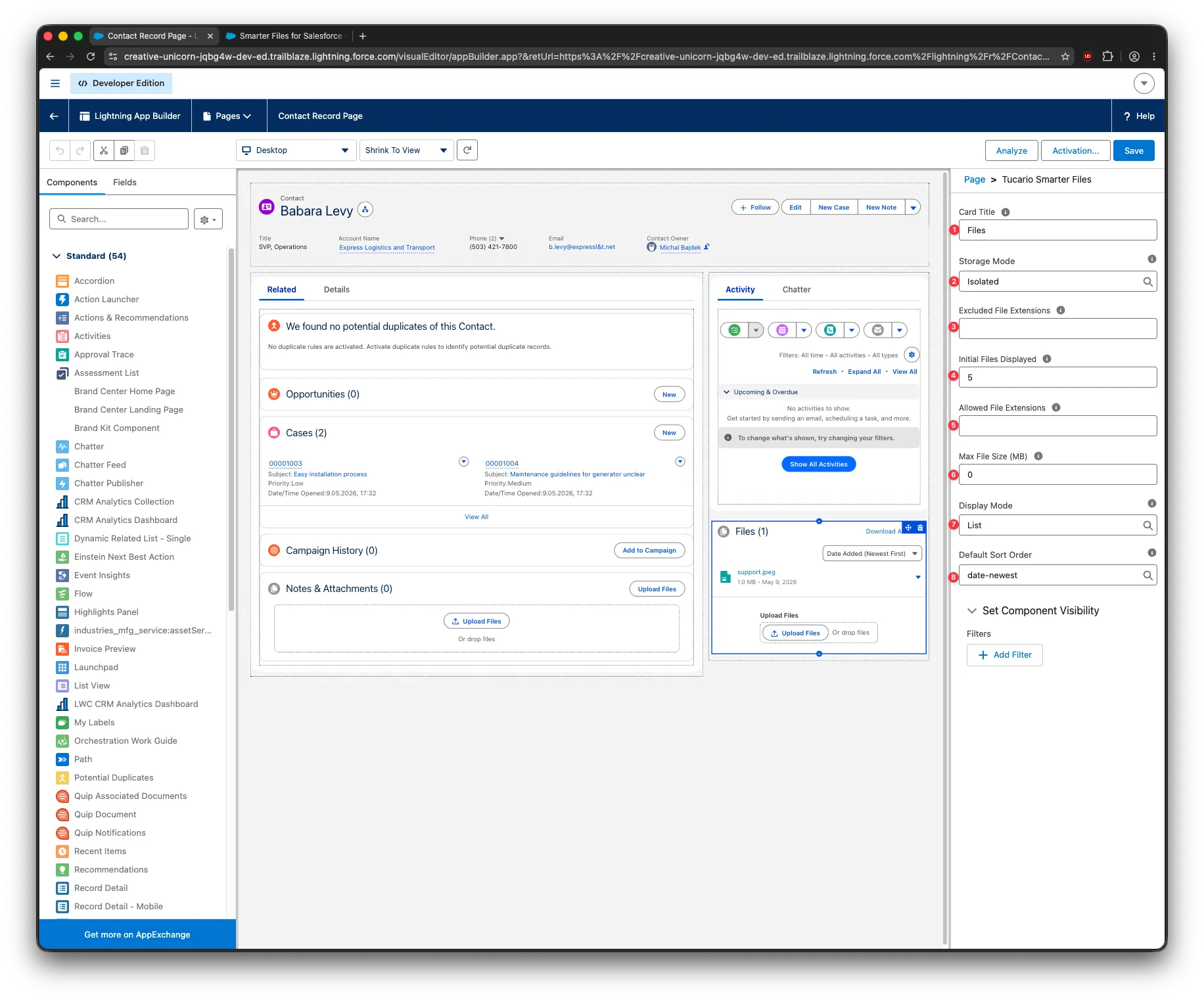

The numbers in the first column match the red callouts on the screenshot above.

#	Property	Type	Default	Description

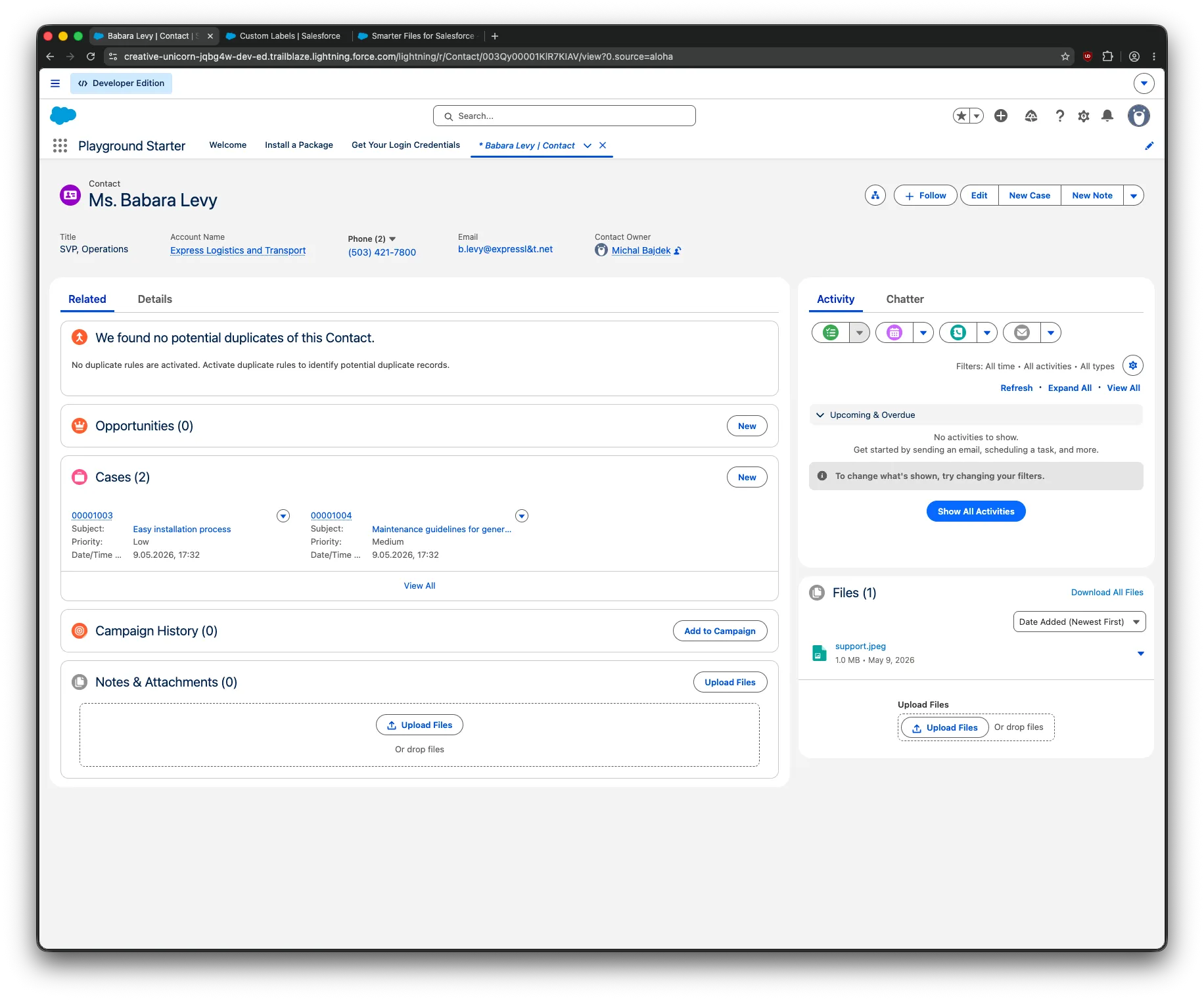

1	Card Title (cardTitle)	String	Files	Header text shown in the component card. Useful when placing multiple instances on the same page.
2	Storage Mode (storageMode)	Picklist Standard, Isolated	Standard	Standard links files via native ContentDocumentLink. Isolated links files only through the junction object — files are hidden from the standard Files related list and unlock visibility controls (categories, private flag).
3	Excluded File Extensions (excludedFileExtensions)	String	(empty)	Comma-separated denylist (e.g., exe,bat,scr). Listed extensions cannot be uploaded.

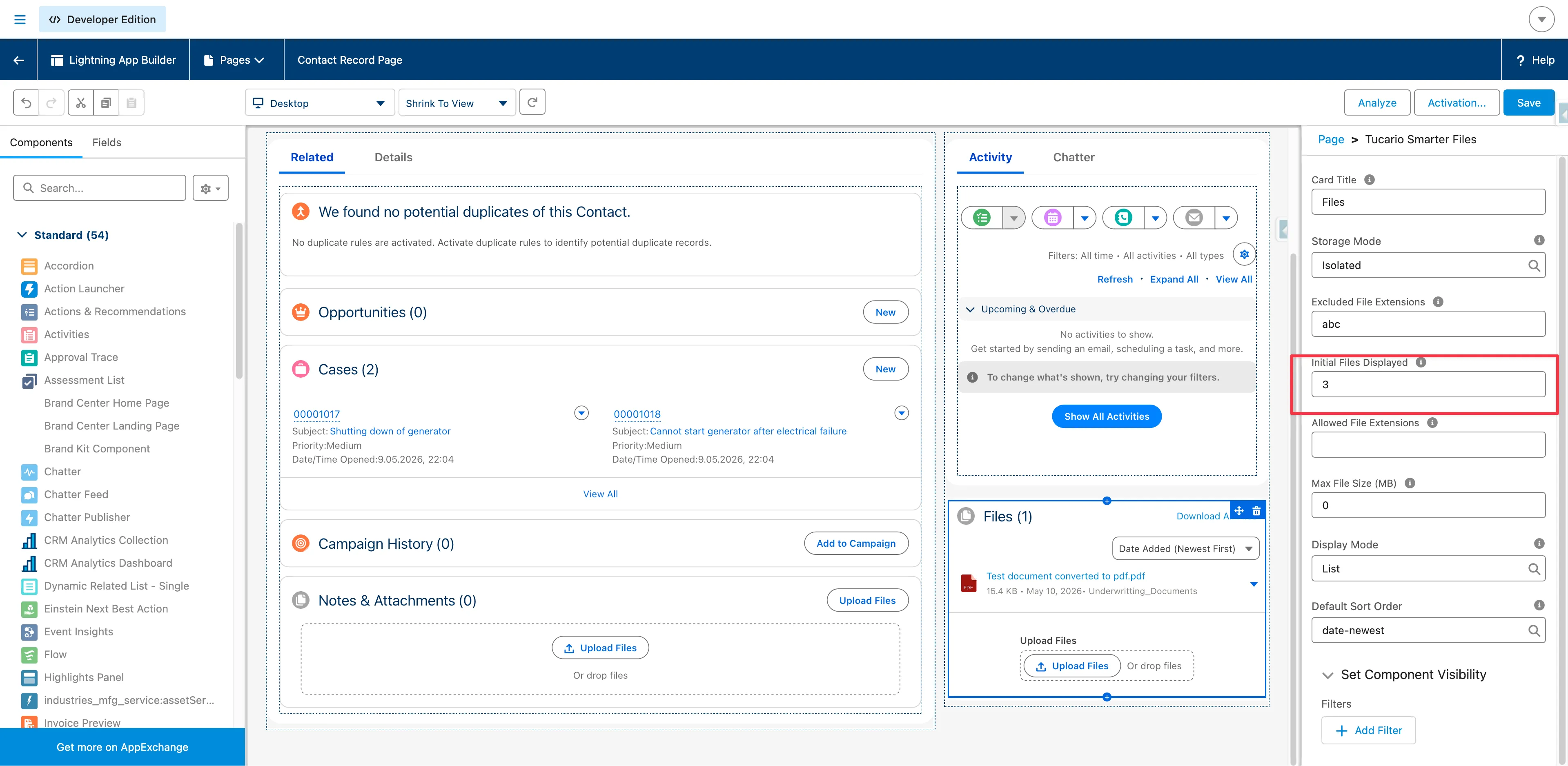

4	Initial Files Displayed (initialFilesDisplayed)	Integer	5	Number of files shown before the “Show All” button appears. 0 or empty means show all.
5	Allowed File Extensions (allowedFileExtensions)	String	(empty)	Comma-separated allowlist (e.g., pdf,docx,png). When set, only these extensions can be uploaded. Empty means no allowlist filter.
6	Max File Size (MB) (maxFileSize)	Integer	0	Per-file upload size cap in megabytes. 0 means no limit.
7	Display Mode (displayMode)	Picklist List, Tiles	List	List shows vertical rows with name/size/date. Tiles shows a responsive grid of cards with file-type icons.
8	Default Sort Order (defaultSortOrder)	Picklist	date-newest	Initial sort applied when the page loads. Users can change it at runtime via the sort combobox above the file list. Allowed values: date-newest, date-oldest, size-largest, size-smallest, name-az, name-za.

Extension format

The parser is forgiving — leading dots are stripped, whitespace is trimmed, matching is case-insensitive. All of the following are equivalent inputs:

docx,exe,pdf
.docx, .exe, .pdf
DOCX , EXE , PDF
.DOCX,  exe  ,  .Pdf

How the Allowed (5) and Excluded (3) lists interact

The validation runs client-side in tucarioFilesWithDownloadAll.js (validateUploadedFiles, lines 596–610) in two sequential checks. A file is uploaded only if it passes both:

1. Allowed check — if Allowed File Extensions is set, the file’s extension must be on that list. Files with no extension are blocked when an Allowed list is configured (no match is possible).
2. Excluded check — if Excluded File Extensions is set, the file’s extension must not be on that list.

This produces the following behaviour:

Allowed (5)	Excluded (3)	File extension	Result
empty	empty	any	Allowed
pdf,docx	empty	pdf	Allowed
pdf,docx	empty	exe	Blocked (not in Allowed)
empty	exe,bat	exe	Blocked (in Excluded)
empty	exe,bat	pdf	Allowed
pdf,exe	exe,bat	exe	Blocked — Excluded wins when an extension appears on both lists
pdf,docx	exe,bat	(no extension)	Blocked (Allowed list configured, no match possible)

Practical takeaway: when you only need to block a few risky types, use Excluded File Extensions alone. When you need to enforce a strict whitelist, use Allowed File Extensions alone — adding an Excluded list on top is only useful if a subset of allowed extensions should still be denied (in which case Excluded takes precedence).

Tip

In most cases, you only need one of the two. Use Allowed to restrict to a small set of known types. Use Excluded to block specific types but allow everything else.

Common configurations

Document-only library

Card Title:               Documents
Storage Mode:             Standard
Allowed File Extensions:  pdf,docx,doc,xlsx,xls,pptx,ppt
Max File Size (MB):       25
Display Mode:             List
Default Sort Order:       date-newest

Confidential file space (Isolated)

Card Title:               Confidential Documents
Storage Mode:             Isolated
Excluded File Extensions: exe,bat,scr,com
Initial Files Displayed:  10
Display Mode:             List
Default Sort Order:       date-newest

Image gallery (Tiles)

Card Title:               Images
Storage Mode:             Standard
Allowed File Extensions:  png,jpg,jpeg,gif,webp
Display Mode:             Tiles
Initial Files Displayed:  12

Customizing displayed text

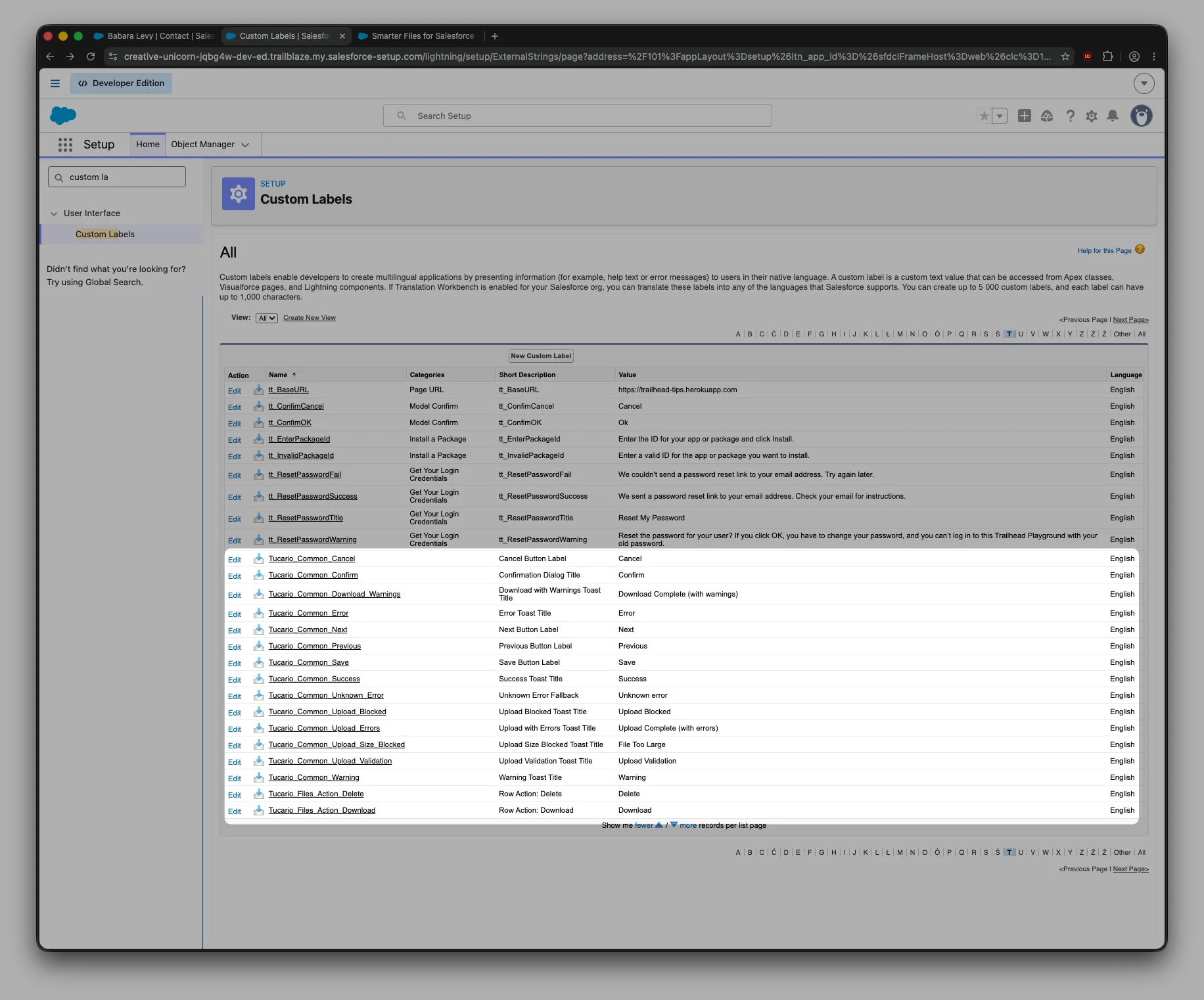

Every user-facing string is a Salesforce Custom Label. To customize any text:

1. Setup → Custom Labels.
2. Filter by Tucario to find all relevant labels (Tucario_Files_*, Tucario_Common_*, Tucario_Visibility_*, Tucario_Wizard_*).
3. Edit the label value, save, and refresh the page.

See Custom Labels for translation tips.

Placement Tips

• Works in the main content area, sidebar, or full-width regions of the record page.
• Can be placed on any standard or custom object record page.
• Multiple instances on the same page are supported — useful for splitting a record into different file spaces (e.g., one Standard-mode instance for general files and one Isolated-mode instance for confidential documents). Set distinct Card Titles to tell them apart.
• The component is record-page only. The Configuration Wizard ships as a separate app page accessible from the Smarter Files by Tucario app launcher entry.
