Views & Sorting

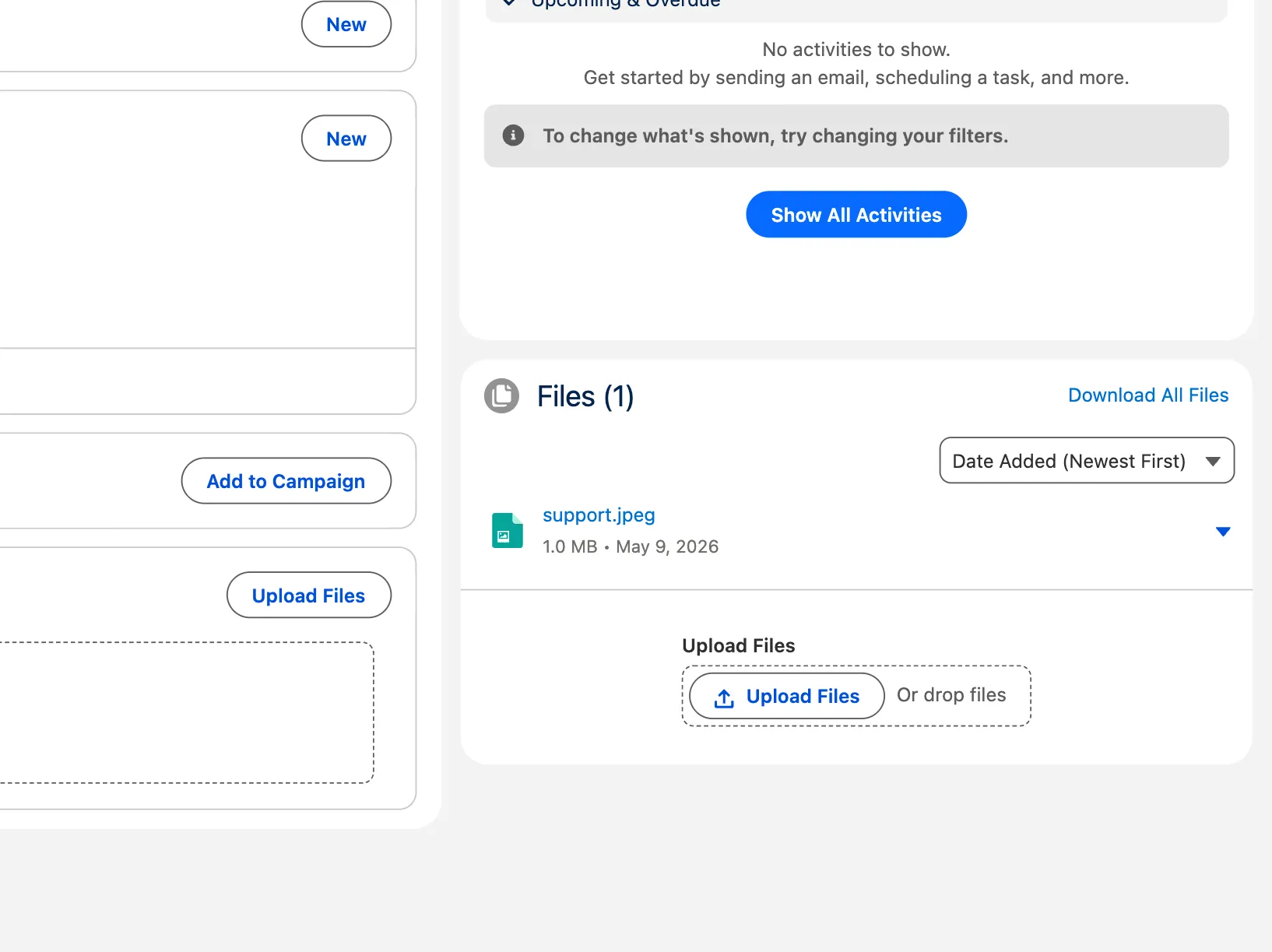

Anatomy of the component

The card has three regions:

1. Header — card title (configurable), file icon, and a Download All link on the right when at least one file is present.
2. Body — the file list (or tile grid), with a sort combobox above the list.
3. Footer — upload area with optional hint lines about allowed extensions and max size.

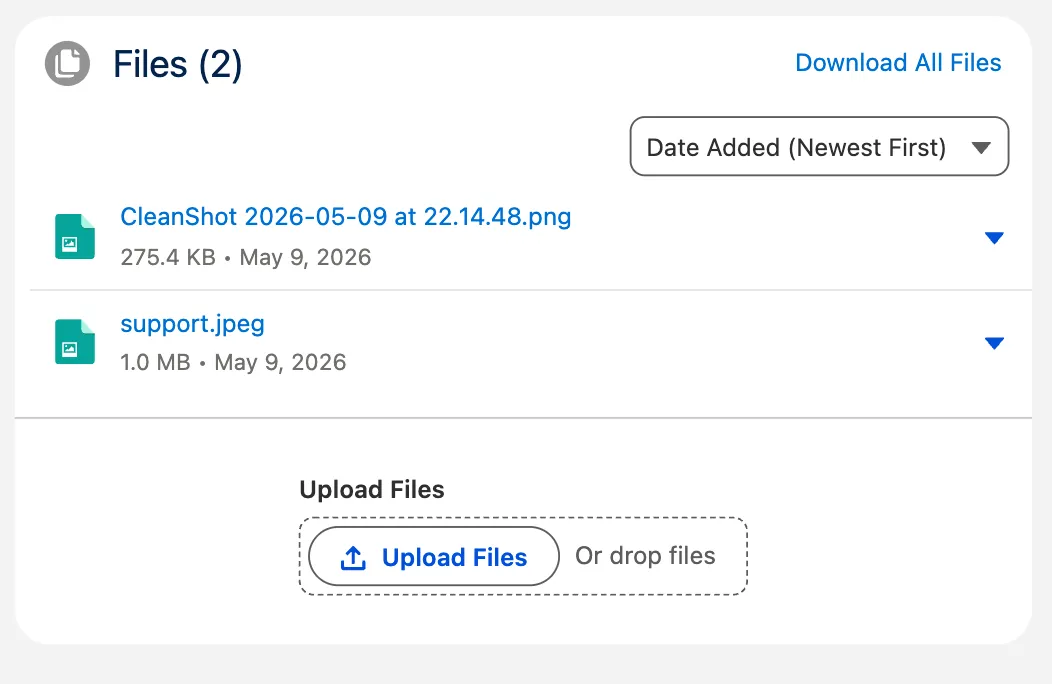

List View

Each row shows: file-type icon, file name (clickable preview), formatted size, date, optional category label, and an action menu on the right. Private files display a small lock icon next to the name.

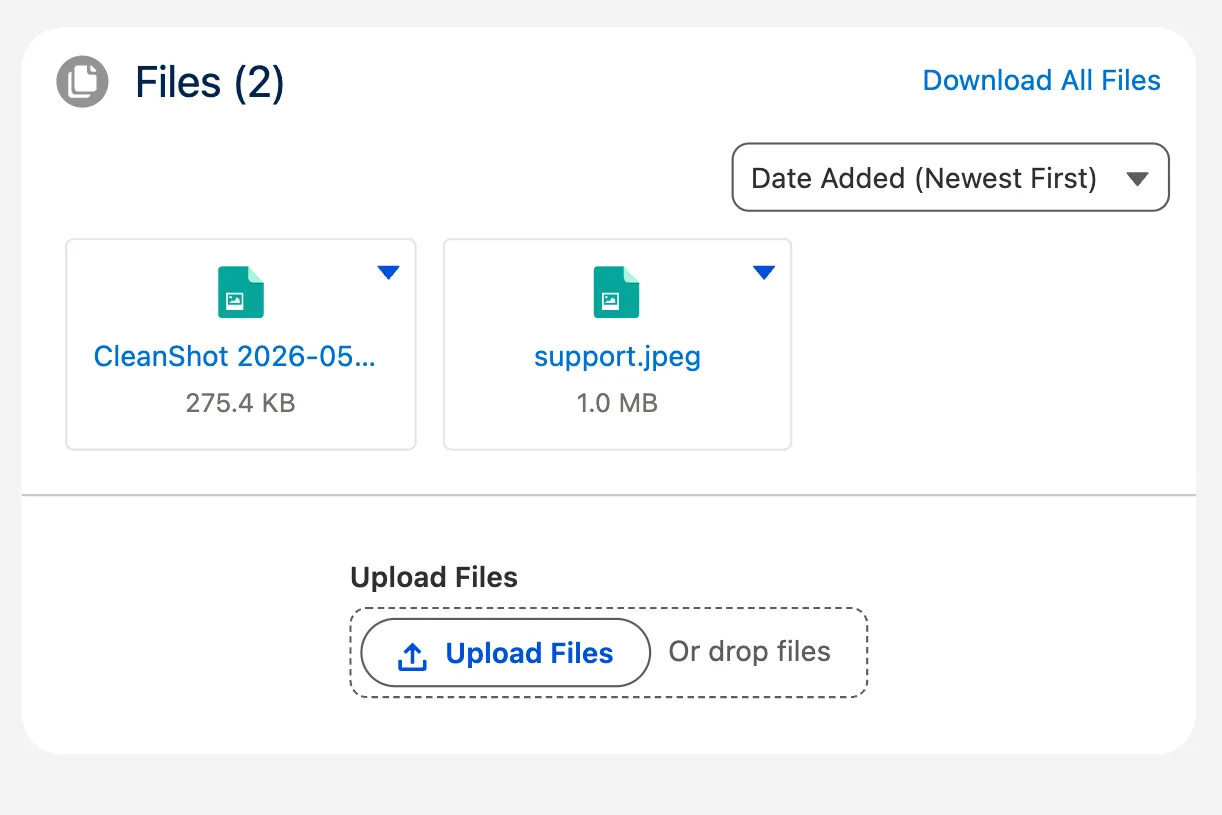

Tile View

Files are rendered as a responsive grid of cards. Each tile has a file-type icon, the file name, and the formatted size.

The admin sets the default view via the Display Mode design property in App Builder (List or Tiles).

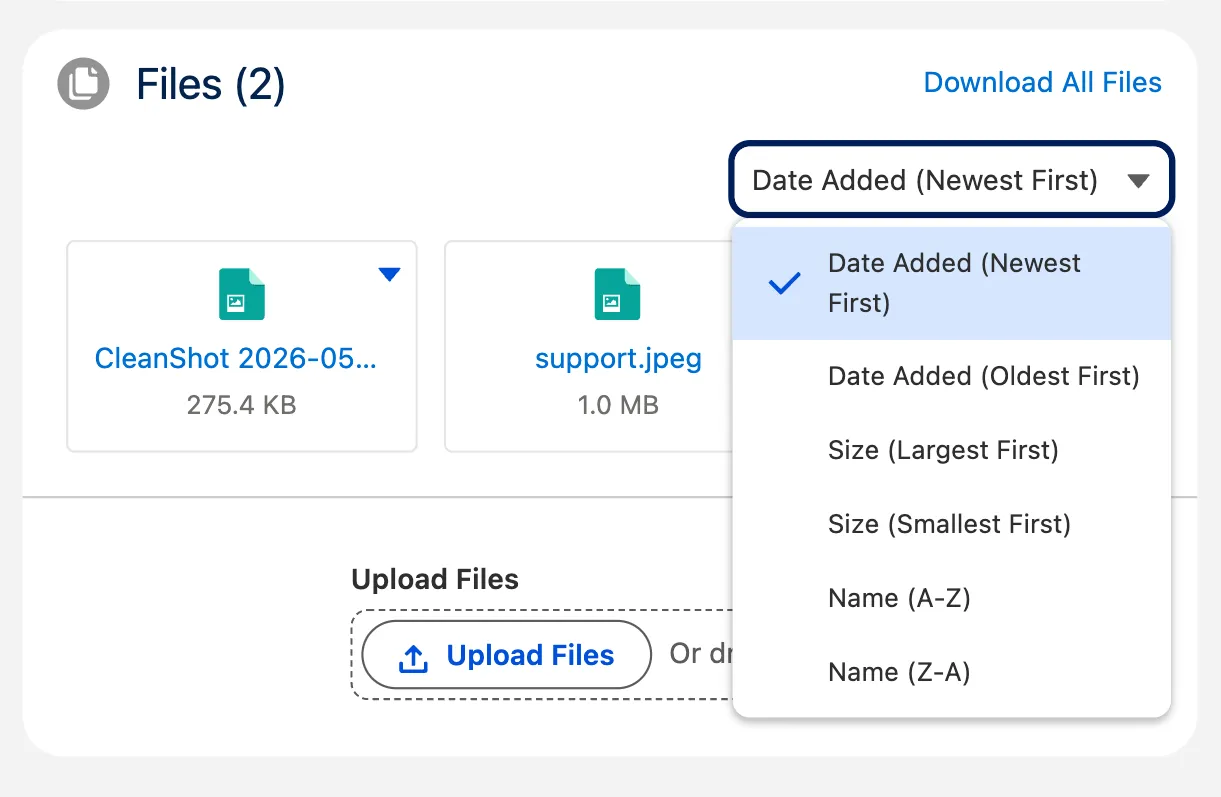

Sorting

Above the file list there is a combobox (no visible label) that lets users re-sort at runtime. Sorting is performed client-side on the already-loaded list — no server round-trip.

Value	Behaviour
date-newest	Date Added (newest first) — default
date-oldest	Date Added (oldest first)
size-largest	Largest first (handy for surfacing real attachments above small signature images)
size-smallest	Smallest first
name-az	Name A → Z
name-za	Name Z → A

The admin sets the default via the Default Sort Order design property. Users can override at runtime — their choice persists for that record page during the session.

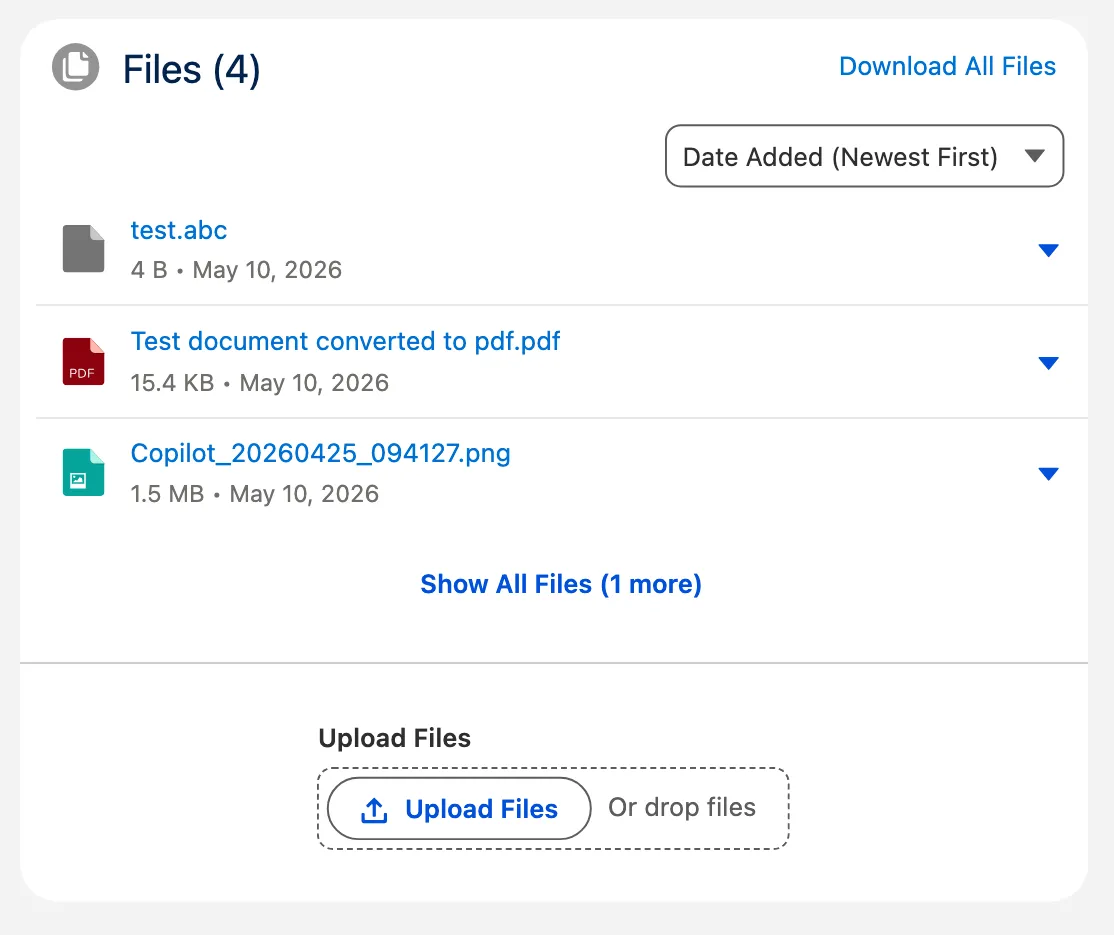

Show All toggle

When Initial Files Displayed is greater than 0 and the record has more files than the limit, a “Show All” button appears below the list. Clicking it expands the view; clicking again collapses it.

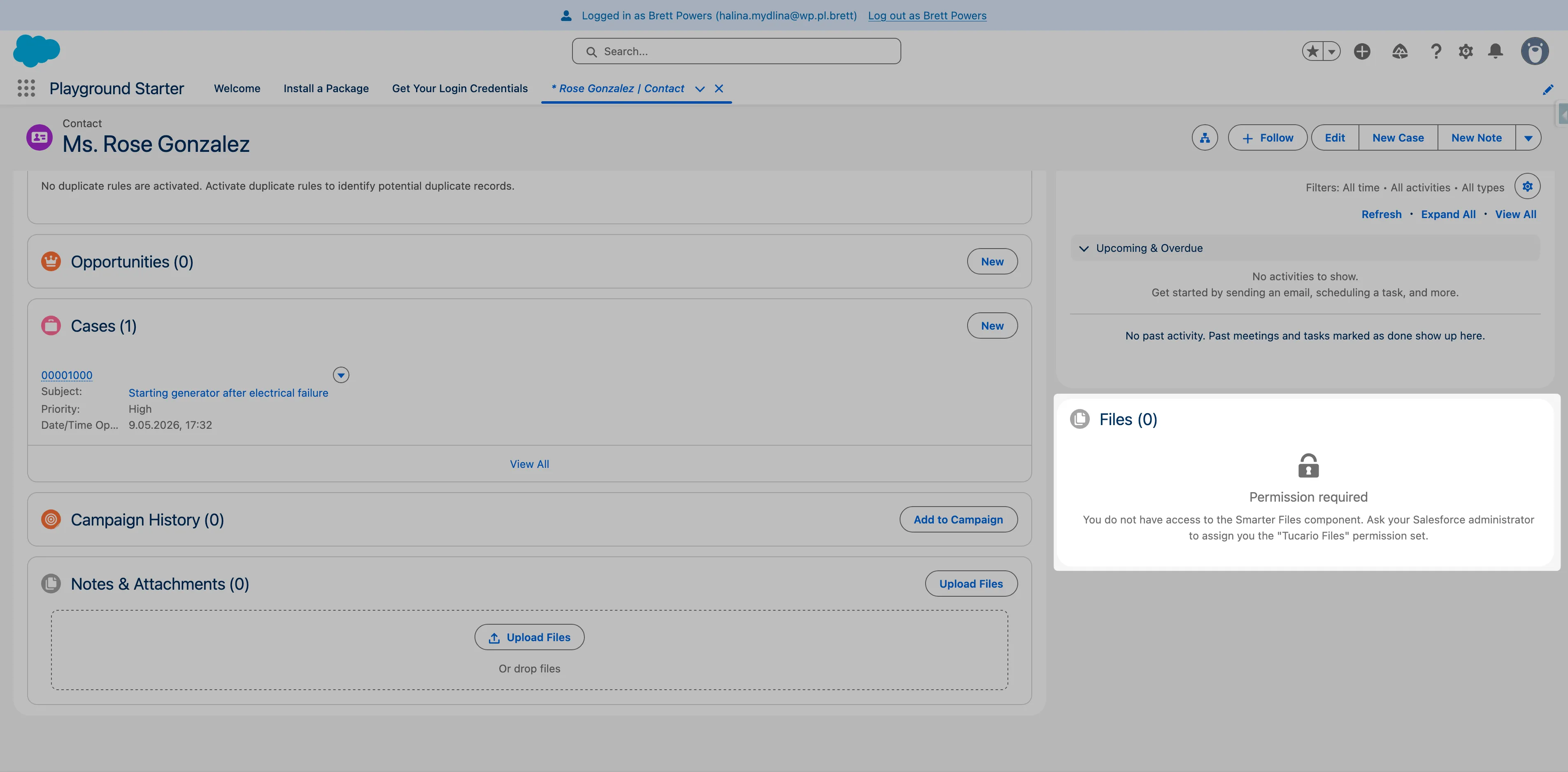

Empty and access-denied states

State	Trigger
Empty	No files match the user’s visibility — a friendly empty-state message is shown.
Missing Access	The user lacks the Apex class access required to call TucarioFileDownloadController — a lock icon and a help message render in place of the file list.
